说事务恢复流程之前，我们来讨论下，会啥会出现事务恢复？XA二阶段提交协议不是强一致性的吗？要解答这个问题，我们就要来看看XA二阶段协议有什么问题？
## 问题一 ：单点故障
由于协调者的重要性，一旦协调者TM发生故障。参与者RM会一直阻塞下去。尤其在第二阶段，协调者发生故障，那么所有的参与者还都处于锁定事务资源的状态中，而无法继续完成事务操作。（如果是协调者挂掉，可以重新选举一个协调者，但是无法解决因为协调者宕机导致的参与者处于阻塞状态的问题）
## 问题二 ：数据不一致
数据不一致。在二阶段提交的阶段二中，当协调者向参与者发送commit请求之后，发生了局部网络异常或者在发送commit请求过程中协调者发生了故障，这会导致只有一部分参与者接受到了commit请求。而在这部分参与者接到commit请求之后就会执行commit操作。但是其他部分未接到commit请求的机器则无法执行事务提交。于是整个分布式系统便出现了数据不一致性的现象。
## 如何解决？
解决的方案简单，就是我们在事务的操作的每一步，我们都需要对事务状态的日志进行人为的记录，我们可以把日志记录存储在我们想存储的地方，可以是本地存储，也可以中心化的存储。Narayana的开源版本，提供了`file`，`db` 2种方式存储，file只能支持单机环境，而db是可以支持集群环境。

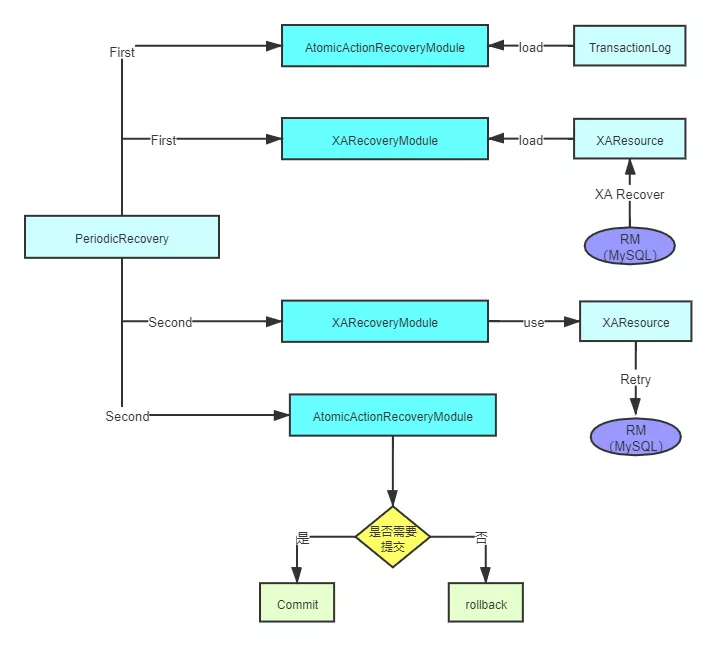

# Narayana 事务恢复流程。
![image.gif](https://cdn.nlark.com/yuque/0/2021/webp/485026/1609739989787-612f9dee-b35e-4882-8d52-9e7d32f425a7.webp)
Narayana使用了单线程轮询RM，执行XA recovery语句，来判断是否有需要恢复的语句。
具体的代码 `com.arjuna.ats.internal.arjuna.recovery.PeriodicRecovery.run()` 方法。以下是代码：
```
public void run ()
   {
       doInitialWait();
       boolean finished = false;
       do
       {
           boolean workToDo = false;
           // ok, get to the point where we are ready to start a scan
           synchronized(_stateLock) {
               if (getStatus() == Status.SCANNING) {
                   // need to wait for some other scan to finish
                   if (tsLogger.logger.isDebugEnabled()) {
                       tsLogger.logger.debug("PeriodicRecovery: background thread waiting on other scan");
                   }
                   doScanningWait();
                   // we don't wait around if a worker scan request has just come in
                   if (getMode() == Mode.ENABLED && !_workerScanRequested) {
                       // the last guy just finished scanning so we ought to wait a bit rather than just
                       // pile straight in to do some work
                       if (tsLogger.logger.isDebugEnabled()) {
                           tsLogger.logger.debug("PeriodicRecovery: background thread backing off");
                       }
                       doPeriodicWait();
                       // if we got told to stop then do so
                       finished = (getMode() == Mode.TERMINATED);
                   }
               } else {
                   // status == INACTIVE so we can go ahead and scan if scanning is enabled
                   switch (getMode()) {
                       case ENABLED:
                           // ok grab our chance to be the scanning thread
                           if (tsLogger.logger.isDebugEnabled()) {
                               tsLogger.logger.debug("PeriodicRecovery: background thread Status <== SCANNING");
                           }
                           setStatus(Status.SCANNING);
                           // must kick any other waiting threads
                           _stateLock.notifyAll();
                           workToDo = true;
                           break;
                       case SUSPENDED:
                           // we need to wait while we are suspended
                           if (tsLogger.logger.isDebugEnabled()) {
                               tsLogger.logger.debug("PeriodicRecovery: background thread wait while SUSPENDED");
                           }
                           doSuspendedWait();
                           // we come out of here with the lock and either ENABLED or TERMINATED
                           finished = (getMode() == Mode.TERMINATED);
                           break;
                       case TERMINATED:
                           finished = true;
                           break;
                   }
               }
           }
           // its ok to start work if requested -- we cannot be stopped now by a mode change to SUSPEND
           // or TERMINATE until we get through phase 1 and maybe phase 2 if we are lucky
           if (workToDo) {
               // ok it is now this thread's turn to run a scan. before starting we check if there is a
               // worker waiting and reset the waiting flag. we will check again after the scan has
               // completed to see if a worker request has come in after starting this scan.
               // if so we avoid notifying the worker ensuring a requst is only confirmed when a
               // full scan has happened afetr the request was made
               boolean notifyRequired;
               synchronized(_stateLock) {
                   notifyRequired = _workerScanRequested;
                   _workerScanRequested = false;
               }
               // we are in state SCANNING so actually do the scan
               if (tsLogger.logger.isDebugEnabled()) {
                   tsLogger.logger.debug("PeriodicRecovery: background thread scanning");
               }
               doWorkInternal();
               // clear the SCANNING state now we have done
               synchronized(_stateLock) {
                   if (tsLogger.logger.isDebugEnabled()) {
                       tsLogger.logger.debug("PeriodicRecovery: background thread Status <== INACTIVE");
                   }
                   setStatus(Status.INACTIVE);
                   // must kick any other waiting threads
                   _stateLock.notifyAll();
                   // check if we need to notify a listener worker that we just finished  a scan
                   if (notifyRequired && !_workerScanRequested) {
                       notifyWorker();
                   }
                   if (getMode() == Mode.ENABLED && !_workerScanRequested) {
                       // we managed a full scan and scanning is still enabled
                       // so wait a bit before the next attempt
                       if (tsLogger.logger.isDebugEnabled()) {
                           tsLogger.logger.debug("PeriodicRecovery: background thread backing off");
                       }
                       doPeriodicWait();
                   }
                   finished = (getMode() == Mode.TERMINATED);
               }
           }
       } while (!finished);
       // make sure the worker thread is not wedged waiting for a scan to complete
       synchronized(_stateLock) {
           if (_workerScanRequested) {
               notifyWorker();
           }
       }
       if (tsLogger.logger.isDebugEnabled()) {
           tsLogger.logger.debug("PeriodicRecovery: background thread exiting");
       }
   }
```

- 别被吓到了，我们重点来关注 `doWorkInternal();` 我们来看看这个方法。

```
//获取所有的RecoveryModule ，然后一个一个执行
        Vector copyOfModules = getModules();
        Enumeration modules = copyOfModules.elements();
        while (modules.hasMoreElements())
        {
            RecoveryModule m = (RecoveryModule) modules.nextElement();
            // we need to ensure we use the class loader context of the recovery module while we are executing
            // its methods
            ClassLoader cl = switchClassLoader(m);
            try {
            m.periodicWorkFirstPass();
            } finally {
                restoreClassLoader(cl);
            }
            if (tsLogger.logger.isDebugEnabled()) {
                tsLogger.logger.debug(" ");
            }
        }
        // take the lock again so we can do a backoff wait on it
        synchronized (_stateLock) {
            // we have to wait for a bit to avoid catching (too many)
            // transactions etc. that are really progressing quite happily
            doBackoffWait();
            // we carry on scanning even if scanning is SUSPENDED because the suspending thread
            // might be waiting on us to complete and we don't want to risk deadlocking it by waiting
            // here for a resume.
            // if we have been TERMINATED we bail out now
            // n.b. if we give up here the caller is responsible for clearing the active scan
            if (getMode() == Mode.TERMINATED) {
                if (tsLogger.logger.isDebugEnabled()) {
                    tsLogger.logger.debug("PeriodicRecovery: scan TERMINATED at phase 1");
                }
                return;
            }
        }
        // move on to phase 2
        if (tsLogger.logger.isDebugEnabled()) {
            tsLogger.logger.debug("Periodic recovery second pass at "+_theTimestamper.format(new Date()));
        }
        modules = copyOfModules.elements();
        while (modules.hasMoreElements())
        {
            RecoveryModule m = (RecoveryModule) modules.nextElement();
            ClassLoader cl = switchClassLoader(m);
            try {
            m.periodicWorkSecondPass();
            } finally {
                restoreClassLoader(cl);
            }
            if (tsLogger.logger.isDebugEnabled()) {
                tsLogger.logger.debugf("PeriodicRecovery: recovery module '%s' second pass processed", m);
            }
        }
```

- 首先会获取框架所有的`RecoveryModule`类，然后一个一个执行，我们先来看看这个类：

```
public interface RecoveryModule
{
    /**
     * Called by the RecoveryManager at start up, and then
     * PERIODIC_RECOVERY_PERIOD seconds after the completion, for all RecoveryModules,
     * of the second pass
     */
    public void periodicWorkFirstPass ();
    /**
     * Called by the RecoveryManager RECOVERY_BACKOFF_PERIOD seconds
     * after the completion of the first pass
     */
    public void periodicWorkSecondPass ();
}
```
RecoveryModule的实现类有 XARecoveryModule ，AtomicActionRecoveryModule，SubordinateAtomicActionRecoveryModule,CommitMarkableResourceRecordRecoveryModule。等4个实现类。
## 恢复执行第一个阶段

- XARecoveryModule :
它的作用就是执行XA recovery 命令从RM，获取 Xid数组。然后缓存起来。核心代码为：

```
//从数据库获取
trans = xares.recover(XAResource.TMSTARTRSCAN);
//缓存刷新
 refreshXidScansForEquivalentXAResourceImpl(xares, trans);
```

- AtomicActionRecoveryModule:
从事务日志里面获取需要恢复的UID,具体代码为：

```
// Transaction type
      boolean AtomicActions = false ;
      // uids per transaction type
      InputObjectState aa_uids = new InputObjectState() ;
      try
      {
      if (tsLogger.logger.isDebugEnabled()) {
          tsLogger.logger.debug("AtomicActionRecoveryModule first pass");
      }
      AtomicActions = _recoveryStore.allObjUids( _transactionType, aa_uids );
      }
      catch ( ObjectStoreException ex ) {
          tsLogger.i18NLogger.warn_recovery_AtomicActionRecoveryModule_1(ex);
      }
      if ( AtomicActions )
      {
         _transactionUidVector = processTransactions( aa_uids ) ;
      }
```
## 恢复执行第二个阶段
首先执行的代码为 ：
```
// move on to phase 2
        if (tsLogger.logger.isDebugEnabled()) {
            tsLogger.logger.debug("Periodic recovery second pass at "+_theTimestamper.format(new Date()));
        }
        modules = copyOfModules.elements();
        while (modules.hasMoreElements())
        {
            RecoveryModule m = (RecoveryModule) modules.nextElement();
            ClassLoader cl = switchClassLoader(m);
            try {
            m.periodicWorkSecondPass();
            } finally {
                restoreClassLoader(cl);
            }
            if (tsLogger.logger.isDebugEnabled()) {
                tsLogger.logger.debugf("PeriodicRecovery: recovery module '%s' second pass processed", m);
            }
        }
```

- AtomicActionRecoveryModule: 进入 `processTransactionsStatus()`,最终会调用到 `com.arjuna.ats.arjuna.recovery.RecoverAtomicAction.replayPhase2()`。我们来看看这个方法。

```
//省略无关代码
 if ( (_theStatus == ActionStatus.PREPARED) ||
        (_theStatus == ActionStatus.COMMITTING) ||
        (_theStatus == ActionStatus.COMMITTED) ||
        (_theStatus == ActionStatus.H_COMMIT) ||
        (_theStatus == ActionStatus.H_MIXED) ||
        (_theStatus == ActionStatus.H_HAZARD) )
       {
           super.phase2Commit( _reportHeuristics ) ;
       }
       else if ( (_theStatus == ActionStatus.ABORTED) ||
             (_theStatus == ActionStatus.H_ROLLBACK) ||
             (_theStatus == ActionStatus.ABORTING) ||
             (_theStatus == ActionStatus.ABORT_ONLY) )
       {
           super.phase2Abort( _reportHeuristics ) ;
       }
```

- 判断事务状态，如果是需要commit阶段的状态，进行commit，否则进行rollback

- XARecoveryModule : 尝试在进行恢复。核心代码为

```
private void bottomUpRecovery() {
            for (XAResource xaResource : _resources) {
                try {
                    xaRecoverySecondPass(xaResource);
                } catch (Exception ex) {
                    jtaLogger.i18NLogger.warn_recovery_getxaresource(ex);
                }
            }
        // JBTM-895 garbage collection is now done when we return XAResources {@see XARecoveryModule#getNewXAResource(XAResourceRecord)}
        // JBTM-924 requires this here garbage collection, see JBTM-1155:
        if (_xidScans != null) {
            Set<XAResource> keys = new HashSet<XAResource>(_xidScans.keySet());
            for(XAResource theKey : keys) {
                RecoveryXids recoveryXids = _xidScans.get(theKey);
                if(recoveryXids.isStale()) {
                    _xidScans.remove(theKey);
                }
            }
        }
    }
```
文章到此，已经写的很长很多了，我们分析了ShardingSphere对于XA方案，提供了一套SPI解决方案，对Atomikos进行了整合，也分析了Atomikos初始化流程，开始事务流程，获取连接流程，提交事务流程，回滚事务流程，事务恢复流程。
希望对大家理解XA的原理有所帮助。
